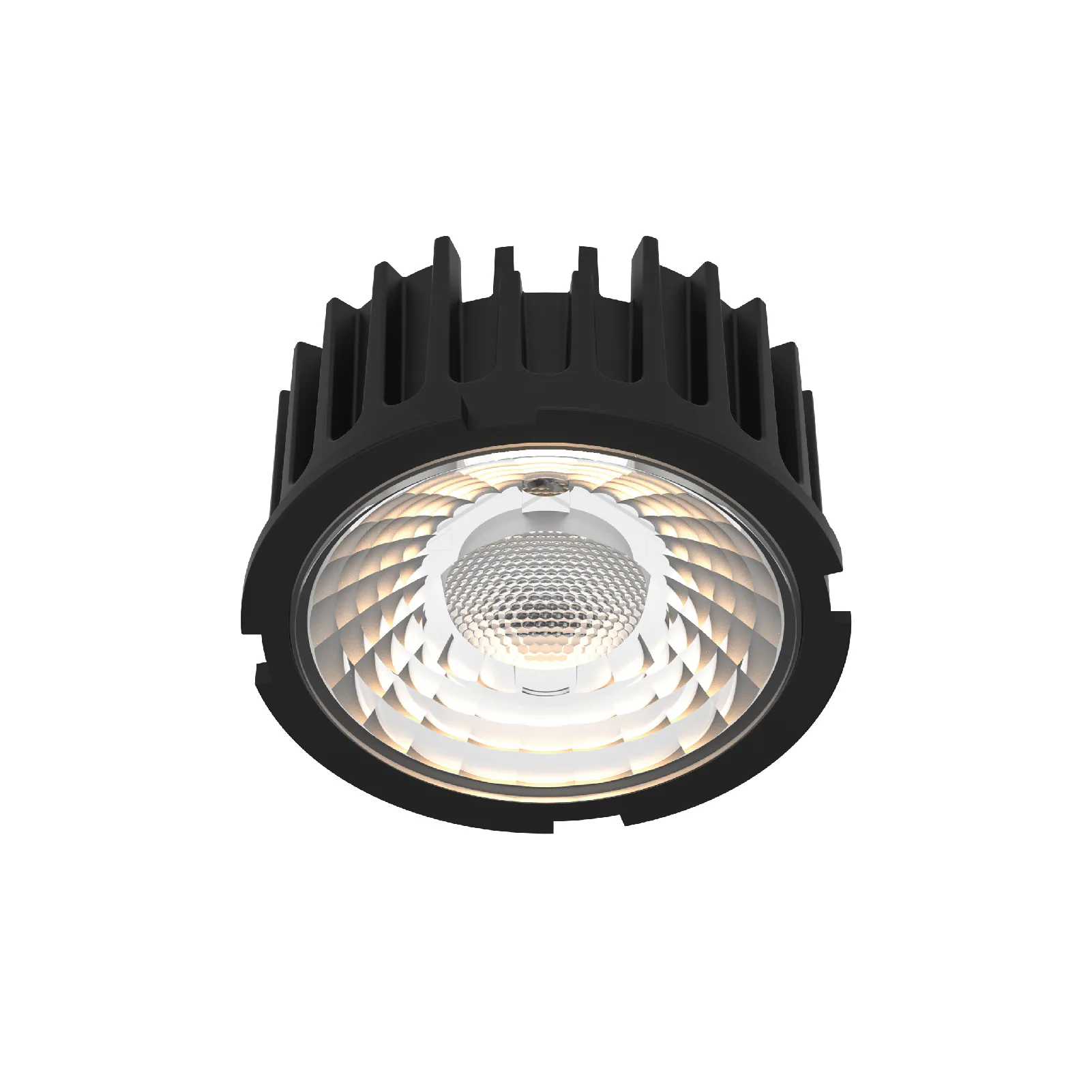

The MBB LED Module is an ultra-slim LED module designed for the ZETTO recessed lighting system. With a compact 27 mm height, it provides a discreet light source for recessed applications where installation depth is limited. Both versions deliver approximately 780–790 lm, with the 7.4W version offering a cost-effective solution and the 6.1W version achieving similar light output with over 17% lower power consumption.
It features a compact 27 mm ultra-slim form factor with an integrated COB LED light source and a controlled 36° beam angle. Its low-profile design minimizes the required installation depth while maintaining a clean and discreet appearance within the recessed lighting system.
It is designed for residential lighting and other indoor applications requiring compact recessed light sources. Its ultra-slim construction is particularly suitable for shallow ceiling spaces and installations where available ceiling depth is limited.
Flux values above are based on 3000K for reference only. Please refer to the specific values shown after selecting the preferred CCT variant.
The MBB LED Module uses COB LED technology with CRI 90+ and SDCM < 3, combined with an integrated optical system that provides a 36° beam angle and UGR < 25. The module is rated IP20 and supports standard ON/OFF operation, with TRIAC dimming available as an optional configuration.
It is compatible with all ZETTO Rings and can also be installed with most GU10-compatible downlight rings available on the market, providing greater flexibility when upgrading or replacing existing recessed lighting installations.
