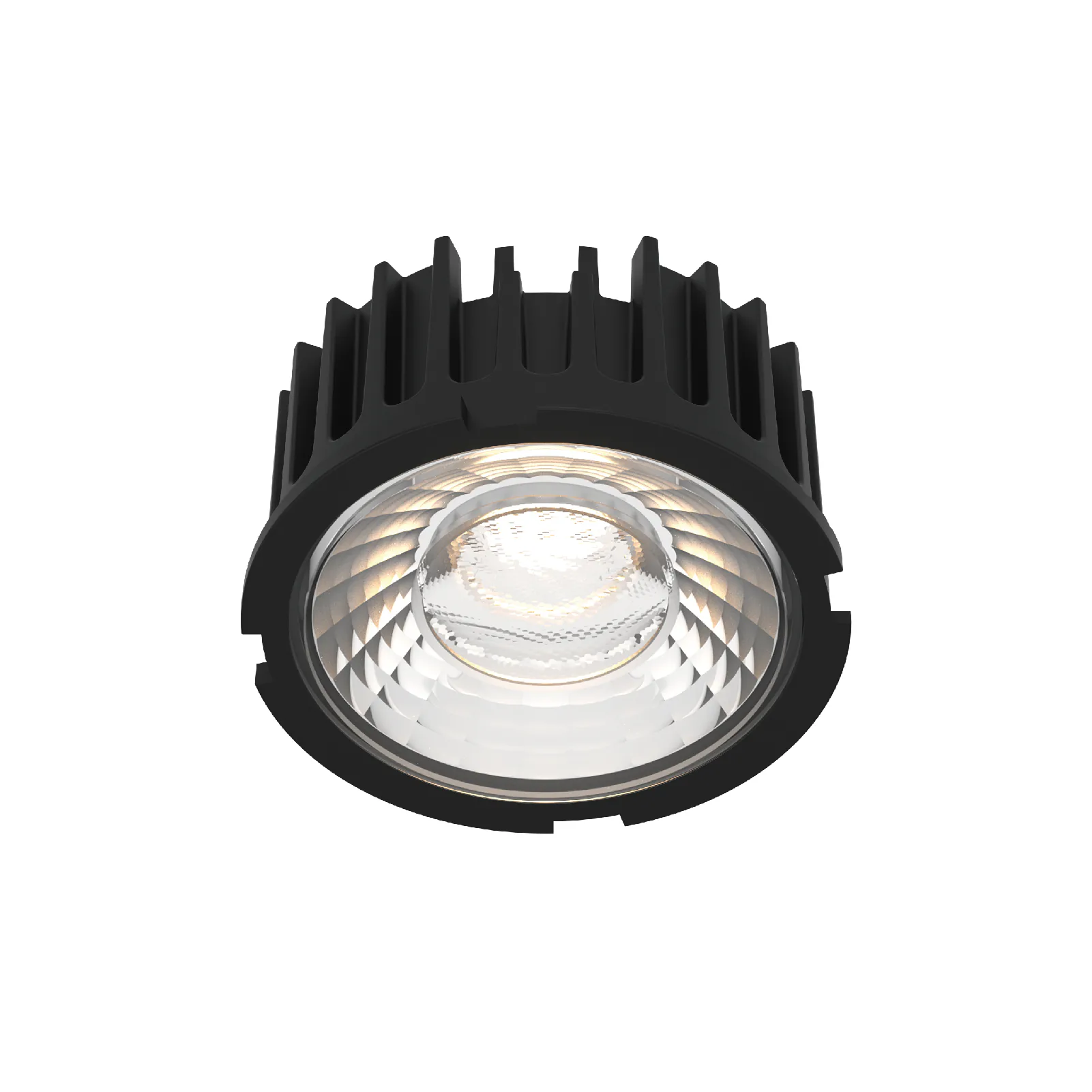

Zetto 3CCT LED Module 6.4W

The ZETTO 3CCT LED Modules provide flexible color temperature options for residential recessed lighting. The 6.4W version offers selectable 2700K, 3000K and 4000K settings, while the 7.5W version combines 3CCT selection with Dim-to-Warm from 3000K to 2200K for a more adaptable lighting atmosphere.
Both modules feature a compact Ø50 mm aluminum housing with a wide 55° beam angle for broad and comfortable light distribution. The 6.4W version has a 27 mm height, while the 7.5W version is 30 mm high, allowing both to maintain a compact form within recessed lighting systems.
The modules are designed for residential lighting and other indoor spaces requiring flexible color temperature selection and comfortable general illumination. The wide 55° beam angle is suitable for living rooms, bedrooms, dining areas and other spaces where broad light distribution is preferred.

• Power：6.4W
• Color Rendering Index：CRI90+
• Beam Angle：55°
• Control：Triac Dimmable
• Material：Aluminum
• Adjustability：Fixed
• Dimensions：ø50x27mm
• Cut-out Size：/
• IP Rating：IP20
• IK Rating：IK06
• Input：AC230V
• Protection Class：Class III
• Total Luminous Flux：630lm/680lm/680lm
• Luminaire Efficacy：106lm/W
• Light Source：SDCM<5, SMD
• Operating Temp：0℃-35℃
• Expected Lifetime：L70B30/50000H, Ta=25°C
• Warranty：5-year
• Product Certification：CE
• Color：Black

Flux values above are based on 3000K for reference only. Please refer to the specific values shown after selecting the preferred CCT variant.

The modules use SMD LED technology with CRI 90+ and SDCM < 5, combined with an integrated optical system providing a 55° beam angle. They operate at AC 230V with Class III protection and support TRIAC dimming.
The 6.4W module provides three selectable color temperatures: 2700K, 3000K and 4000K. The 7.5W module provides the same three CCT options and additionally supports Dim-to-Warm from 3000K to 2200K, allowing the light to become warmer as it is dimmed.
