TR3 LED Spot Light 28.5W Adjustable, 1 Phase Track Light, UGR<10

The TR3 Series is a cost-effective, high-performance 1-phase LED track spotlight tailored for exceptional retail accent lighting.
Featuring a sleek cylindrical aluminum housing in sanded white or black, the luminaire blends seamlessly into modern commercial spaces. Its minimalist architectural aesthetic maintains a compact profile while integrating efficient thermal management.
It is ideal for retail spaces like boutiques, jewelry displays, and showrooms requiring precise accent lighting. Low-glare performance ensures visual comfort and enhances the customer experience.

Product Information

• Power：28.5W
• Color Rendering Index：CRI90+
• Beam Angle：24°
• Control：On/Off
• Material：Aluminum
• Adjustability：Adjustable 90° · 350° Rotation

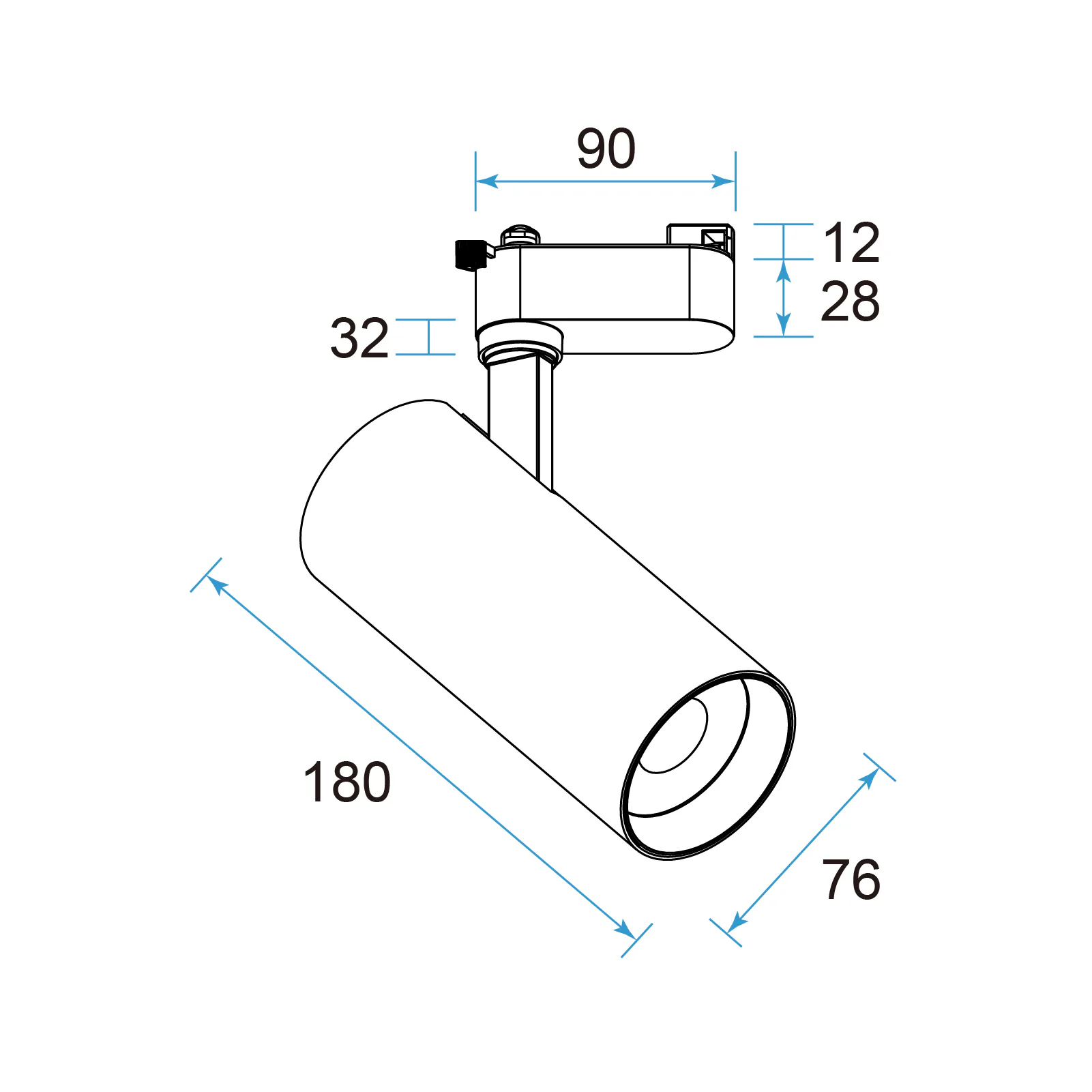

• Dimensions：ø76x180mm
• Cut-out Size：/
• IP Rating：IP20
• IK Rating：IK04
• Input：AC230V
• Protection Class：Class I
• Total Luminous Flux：2420lm
• Luminaire Efficacy：85lm/W
• Light Source：COB, SDCM<3
• Glare Rating：UGR<10
• Operating Temp：0℃-35℃
• Expected Lifetime：L80B10/50000H, Ta=25°C
• Warranty：5-year
• Product Certification：/

Flux values above are based on 3000K for reference only. Please refer to the specific values shown after selecting the preferred CCT variant.

Built with a durable aluminum body and premium COB light source, the fixture achieves a CRI90 color rendering index and a 50,000-hour lifespan (L80B10) backed by a 5-year warranty. It features a flexible adjustment mechanism supporting 350° rotation and 90° tilt to direct the focused 24° beam precisely where needed. Operating on standard 1-phase 3-wire track systems with AC230V input, it delivers superior luminous efficacy under strict SDCM<3 color consistency.

Installation Note: This product is a Class I luminaire. During installation or maintenance, it is essential to ensure that the grounding terminal of the luminaire is securely connected to the grounding wire of the track system or the building to guarantee electrical safety.
