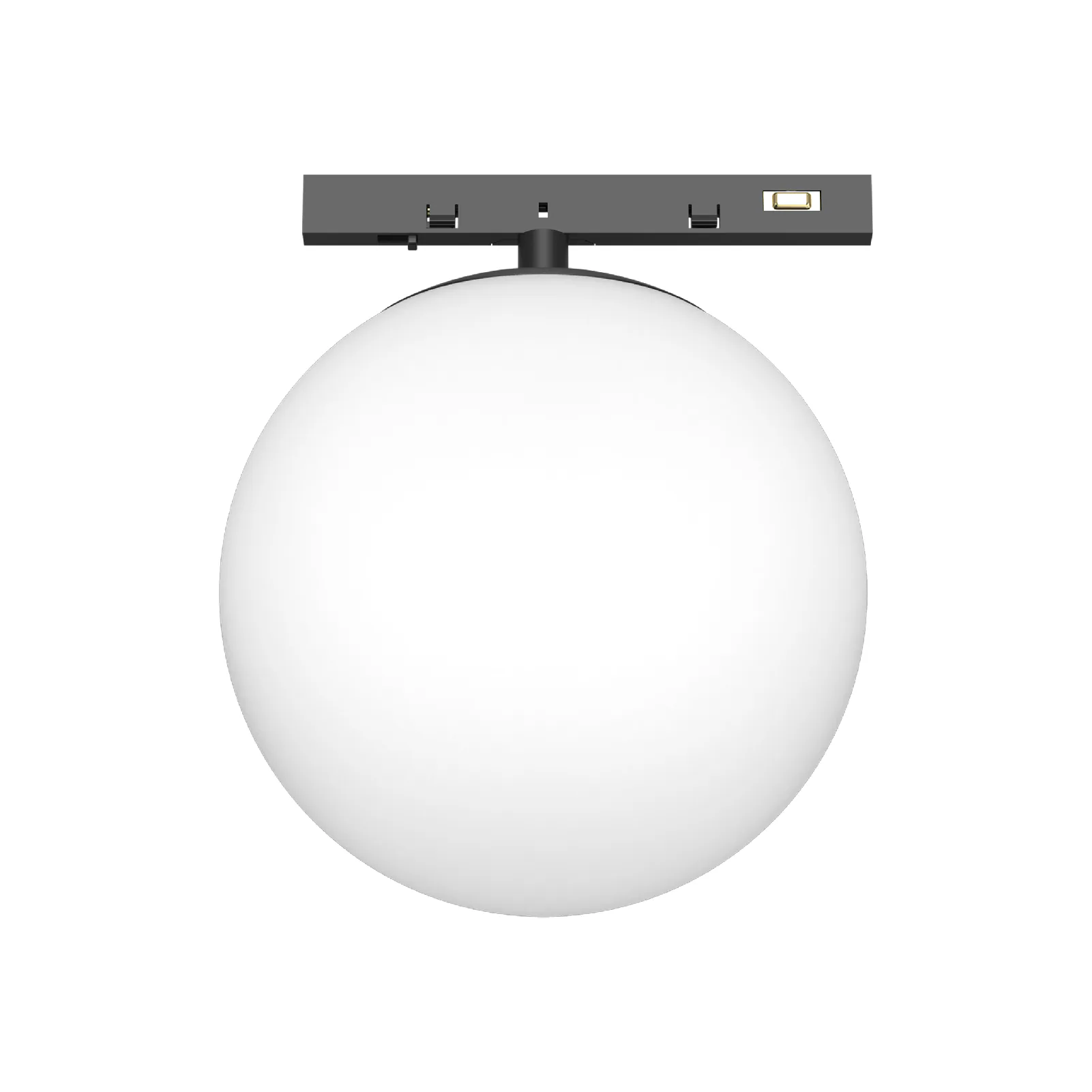

M5定向LED 射灯5W，24V迷你轨道灯

The M5 Series creates a discreet framework for lighting within the interior — slim, flexible and safe. Designed around a 5mm ultra-slim track and compact luminaires, it provides a low-profile lighting system that can adapt to different lighting arrangements while maintaining a clean and unobtrusive appearance.
It features an ultra-slim 5mm track profile paired with miniature luminaires for a refined and discreet visual appearance. Grille lights, linear lights, spotlights and pendant lights are designed with compact proportions and a consistent design language, allowing the lighting system to integrate naturally into the interior architecture.
It is designed for small-scale and detail-oriented interior spaces where conventional track systems may appear visually excessive. It is particularly suited to residential interiors, boutique retail, hospitality areas, dining spaces, display cabinets and other applications requiring compact accent or decorative lighting with minimal visual presence.

• Power：5W
• Color Rendering Index：CRI90+
• Beam Angle：360°
• Control：开关控制
• Material：Aluminum+Plastic
• Adjustability：Fixed
• Dimensions：ø100mm
• Cut-out Size：/
• IP Rating：IP20
• IK Rating：IK02
• Input：DC24V
• Protection Class：Class III
• Total Luminous Flux：290lm
• Luminaire Efficacy：58lm/W
• Light Source：SDCM<5, SMD
• Operating Temp：0℃-35℃
• Expected Lifetime：L70B30/50000H, Ta=25°C
• Warranty：5-year
• Product Certification：/
• Color：Sanded Black

Flux values above are based on 3000K for reference only. Please refer to the specific values shown after selecting the preferred CCT variant.

The M5 Series operates on a 24V low-voltage system with concealed wiring and a compact 5mm track profile. Its secure mechanical locking structure allows the luminaires to be firmly mounted and repositioned along the track. Different luminaire types can be combined on the same track to create lighting arrangements ranging from ambient illumination to focused accents.
